Product attribute
Application:
The product is a very high-pressure airless paint spray system designed for pressures ranging from 200 to 700 Bar. It is ideal for applications where chemical resistance to solvents and aggressive fluids is required, particularly suitable for use in painting spray machines.
Structure:
Core: Made of nylon for strength and durability.
Reinforcement: Features a double braid of steel wire to enhance pressure resistance and overall performance.
Cover: Coated with polyurethane for added protection and flexibility.
|
PAINT SPRAY HOSE(HX-PS-II) |
||||||||||
|
I.D |
O.D |
W.P(working pressure) |
B.P(burst pressure) |
MIN.Bend Radius |
Remark |
|||||
|
inch |
mm |
inch |
mm |
bar |
psi |
bar |
psi |
mm |
inch |
|
|
1/4 |
6.5 |
0.54 |
13.5 |
450 |
6500 |
1800 |
26000 |
100 |
4.0 |
|
|
5/16 |
8 |
0.6 |
15.2 |
400 |
5800 |
1600 |
23200 |
110 |
4.3 |
|
|
3/8 |
10 |
0.69 |
17.5 |
380 |
5500 |
1520 |
22000 |
127 |
5.0 |
|
|
1/2 |
12.7 |
0.8 |
20.3 |
300 |
4350 |
1200 |
17400 |
178 |
7.0 |
|
|
5/8 |
16 |
0.98 |
25.5 |
210 |
3000 |
840 |
12000 |
203 |
8.0 |
|
|
3/4 |
19 |
1.2 |
29.5 |
160 |
2300 |
640 |
9200 |
250 |
10.0 |
|
|
1 |
25 |
1.5 |
39 |
150 |
2175 |
600 |
8700 |
305 |
12.0 |
|

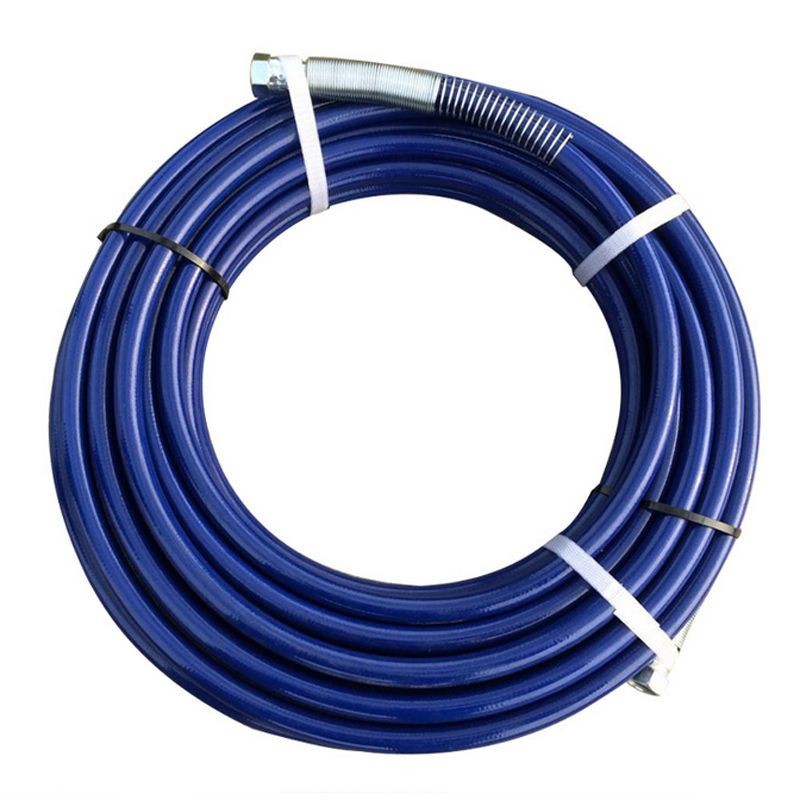

Product Pictures
Product Description:
High Pressure Paint Spray Hose is an important tool specially designed for high pressure spray operations.
The working principle
In high-pressure spraying operations, Paint Spray Hose connects the spraying equipment and the spray gun, and transports the paint, paint, glue and other fluids from the spraying equipment to the spray gun. When the fluid passes through the spray tube under high pressure, due to the pressure resistance and good sealing of the spray tube, it can ensure that the fluid reaches the spray gun at a stable pressure and flow rate, and then is evenly sprayed on the surface of the object after atomizing through the spray gun.
