Shandong Danflex Hose Co., Ltd. is one of the leading manufacturers and suppliers of sae 100 r7 thermoplastic hydraulic hose in China, also supporting customized service. Be free to buy cheap sae 100 r7 thermoplastic hydraulic hose for sale here and get quotation from our factory. Good service and reasonable price are available.
Technical specification
Pressure rating: Up to 20,000 psi (1379 bar).
Temperature range: Generally between -40°C and +100°C.
Size range: from 1/8" to 1" in diameter or larger.
Bending radius: According to the different diameter, the bending radius is reduced accordingly, easy to install.
Wall thickness: Meets the wall thickness requirements of SAE 100R7 standard.
|
SAE100R7 HOSE |
||||||||||
|
I.D |
O.D |
W.P(working pressure) |
B.P(burst pressure) |
MIN.Bend Radius |
Remark |
|||||
|
inch |
mm |
inch |
mm |
bar |
psi |
bar |
psi |
mm |
inch |
|
|
1/8 |
3 |
0.23 |
6 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
1/8 |
3.5 |
0.31 |
8 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
5/32 |
4 |
0.34 |
8.6 |
210 |
3045 |
840 |
12180 |
25 |
1.0 |
|
|
3/16 |
5 |
0.38 |
9.6 |
200 |
2900 |
800 |
11600 |
25 |
1.0 |
|
|
1/4 |
6.4 |
0.45 |
11.5 |
200 |
2900 |
800 |
11600 |
32 |
1.3 |
|
|
5/16 |
8 |
0.52 |
13.2 |
180 |
2610 |
720 |
10440 |
45 |
1.8 |
|
|
3/8 |
10 |
0.60 |
15.2 |
160 |
2320 |
640 |
9280 |
55 |
2.2 |
|
|
1/2 |
13 |
0.75 |
19 |
140 |
2030 |
560 |
8120 |
77 |
3.0 |
|
|
5/8 |
16 |
0.87 |
22 |
100 |
1450 |
400 |
5800 |
110 |
4.4 |
|
|
3/4 |
19 |
1.02 |
26 |
90 |
1305 |
360 |
5220 |
140 |
5.5 |
|
|
1 |
25 |
1.30 |
33 |
70 |
1015 |
280 |
4060 |
200 |
8.0 |
|
Look out：We provide OEM/ODM services and can customize products according to customer needs. For special customization, please contact us for more information.

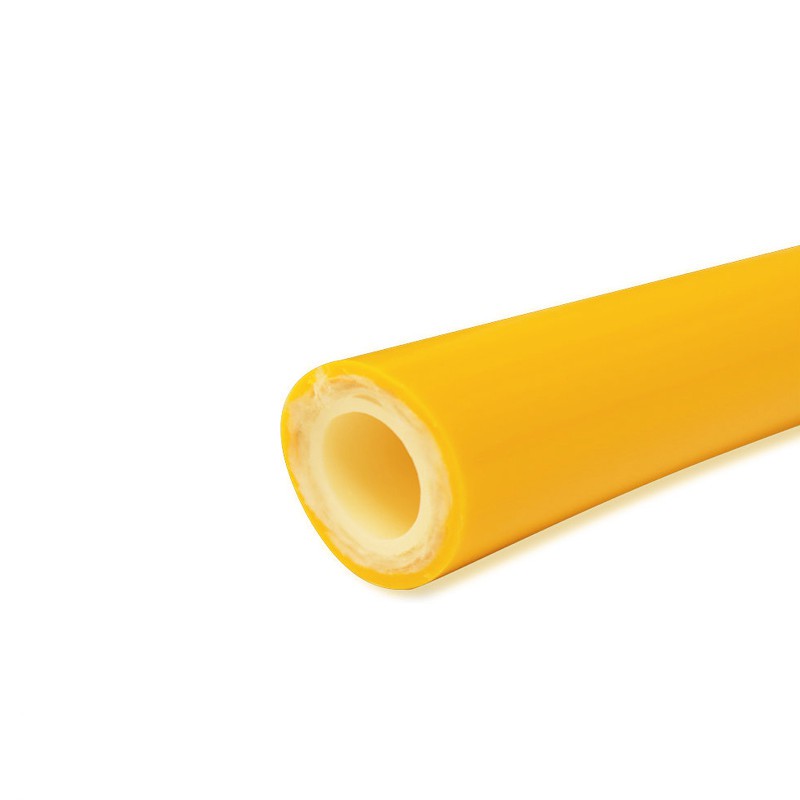

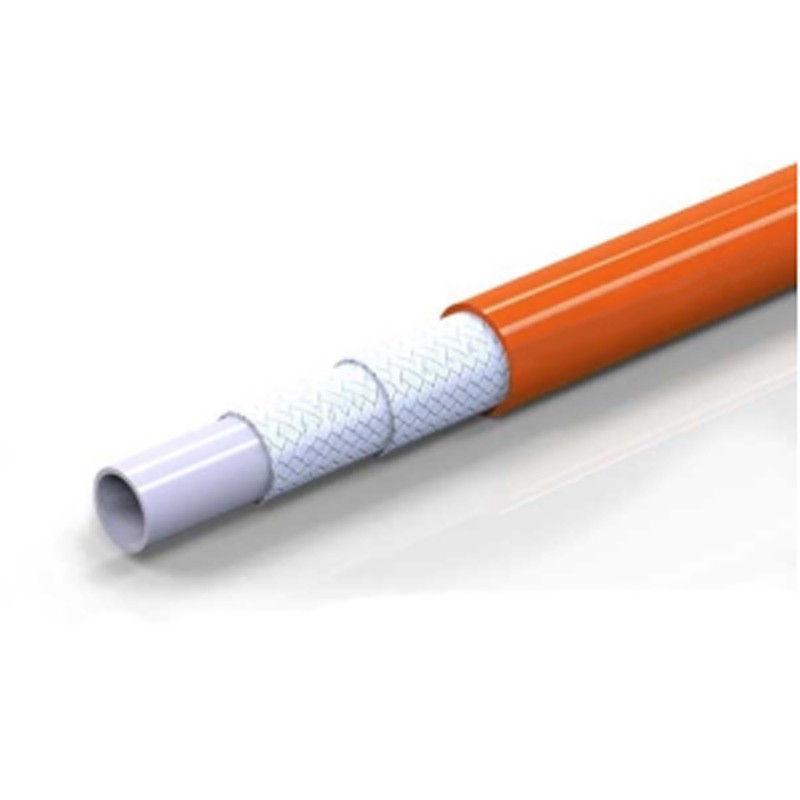

Product Pictures
Product Description:
SAE 100 R7 Thermoplastic Hydraulic Hose is a high performance hose designed for high pressure hydraulic systems. It is widely used in automotive, construction machinery, agricultural machinery, mining equipment, aerospace, refrigeration systems and other fields, to provide reliable support for various hydraulic control systems. SAE 100 R7 Thermoplastic Hydraulic Hose for safety, durability and flexibility in high pressure applications.
Main feature
High pressure tolerance: SAE 100 R7 Hose can withstand pressures up to 20,000 psi (approximately 1,379 bar) and is suitable for high pressure hydraulic systems.
Flexibility: By optimizing the design, this hose has a small bending radius and is easy to install in tight Spaces.
Quick connection: Compatible with quick connection connectors, simplifies installation and increases work efficiency.
Through the above introduction, you can understand the key features and benefits of SAE 100 R7 Thermoplastic Hydraulic Hose. If you are looking for a high performance, durable and easy to install hydraulic Hose solution, SAE 100 R7 Hose will be the ideal choice for you.
